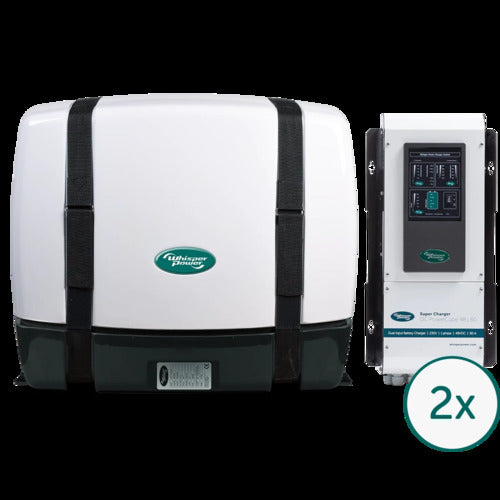

WhisperPower - M-GV3 PICCOLO DC GENVERTER 8.6kW K

Einsparung €1.904,24
WhisperPowerSKU: 49001306

Preis:
Sonderpreis€19.253,96 Normalpreis€21.158,20

inkl. 19 % Mwst Versandkosten werden im Checkout berechnet.

Lagerbestand:
nicht lagernd

GPSR Information

Beschreibung

WhisperPower - M-GV3 PICCOLO DC GENVERTER 8.6kW K

Meet the Piccolo GV 3
The Piccolo GV 3 combines the latest diesel engine technology with a new way of producing electrical power. Instead of adding an alternator with fixed speed on the back of the fly-wheel, we have designed a very compact permanent magnet alternator (PM), located just behind the engine. The Piccolo GV 3 is designed to produce DC power by connecting up to 3 superchargers (DC PowerCubes), which can be connected to shore/land power as well.
Main Specifications
Continuous Power at 25°C (77°F)
8.6 kW
Number of DC PowerCubes
2
Nominal output voltage
24/48 VDC
Rpm range
1500 .. 2500 rpm, adjustable
Engine
WhisperPower Kubota D722
Emission class
Stage V Certified
Length x width x height (cabinet), mm (in.)
740 x 550 x 620 (29.1 x 21.7 x 24.4)
Length x width x height (2 x DC PowerCube), mm (in.)
2 times: 575 x 221 x 316 (22.6 x 8.7 x 12.4)
Dry weight (cabinet + 2 x DC PowerCube), kg (lb.)
175 + 2 x 26 (385.8 + 2 x 57.3)

M-GV3 PICCOLO DC GENVERTER 8.6kW K Marine UNGROUNDED
